Faderboard Version 3

January 8, 2022

This post details a significant update to my original Faderboard device for Ableton Live. I finally made time to learn enough Max for Live to do this in the way that I always wanted.

The prior version worked fine, but changing sounds was very cumbersome, requiring updating the sample loaded into 8 Simpler devices. This new version uses a single sample "drop zone", and offers some nice usability and capability improvements.


Here is an instance of zs-Faderboard3 playing the example sample, sent through a Pedal device then into Valhalla Supermassive on the "We Are Stardust" preset.

The demo shows off the device's loop management abilities too, including seamlessly transitioning from forward playback to reverse. It also shows a visualization of each voice's place in their journey through the sample.

Get Started

Click the link below to download the Max For Live device:

After downloading, you can then add the device file to your User Library in Ableton Live, or directly into a MIDI track. You can then drag a sample onto the "Drop Sample Here" area. The .wav file below is a nice example to start with. You can also drag a clip directly from an Audio track in Ableton Live to the drop zone.

Set the root note for your sample. For example, the above sample is rooted at D3.

Then move any of the Gain sliders from -inf Db to a positive value to start playing the sample at the pitch indicated above. The sample is triggered as soon as the Gain slider moves off of it's zero position.

You can also set each voice to its own left/right panning location.

touchOSC Integration over WiFi

If you have an iPad and a Mac, you can use the software touchOSC to create a set of virtual controls to control zs Faderboard3 over wireless MIDI.

Here's a long demo showing how that can work:

Download the touchOSC definition here:

You can then configure touchOSC on the iPad to send MIDI over "Network Session 1".

  • In the touchOSC editor page, click the little chain icon in the top row, next to the wifi icon.
  • Ensure Connection 1 is checked, and click the down arrow on the right side of that row.
  • That should reveal a Send Port and Receive Port option.
  • For both Send Port and Receive Port, touch Browse and choose Network Session 1

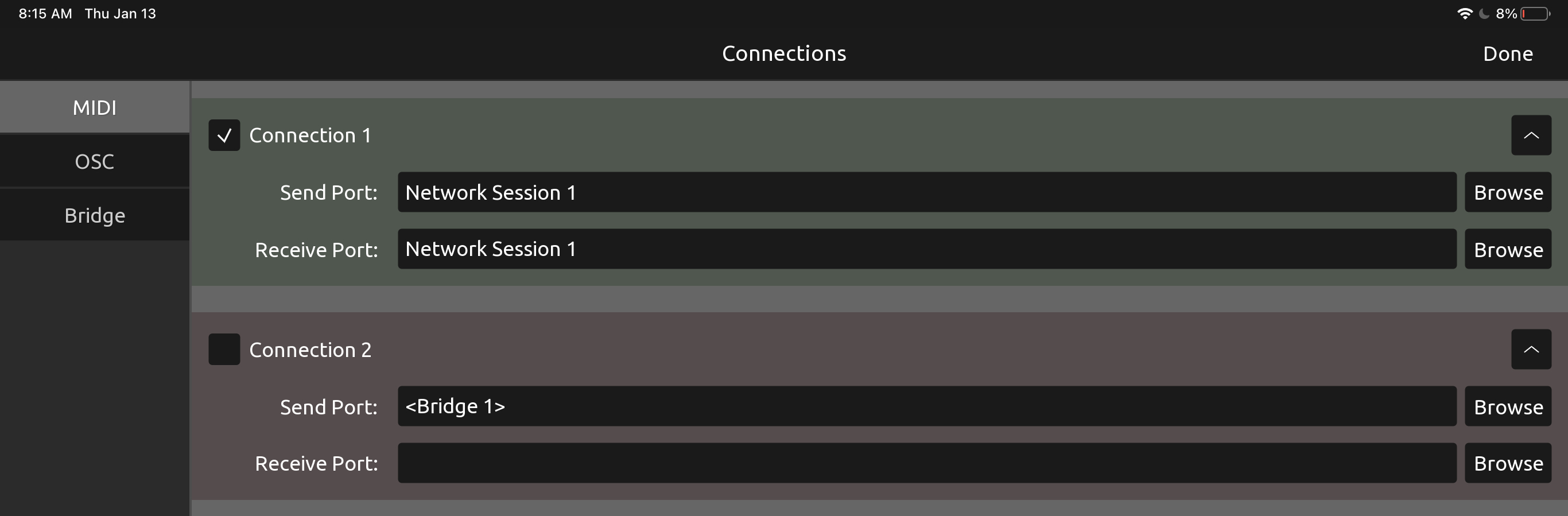

touchOSC network config

After you tap Done, touchOSC will send messages over network MIDI.

To set up the Mac to receive the network MIDI data, follow these instructions:

  • Ensure touchOSC is open on the iPad
  • On the Mac, open the app Audio MIDI Setup
  • Click the Window menu and choose Show MIDI Studio
  • Click the MIDI Studio menu and choose Open MIDI Network Setup...
  • If the My Sessions panel is empty, click the + button to create a Session 1
  • Check the checkbox next to Session 1
  • In the Directory panel, click your iPad, then click the Connect button

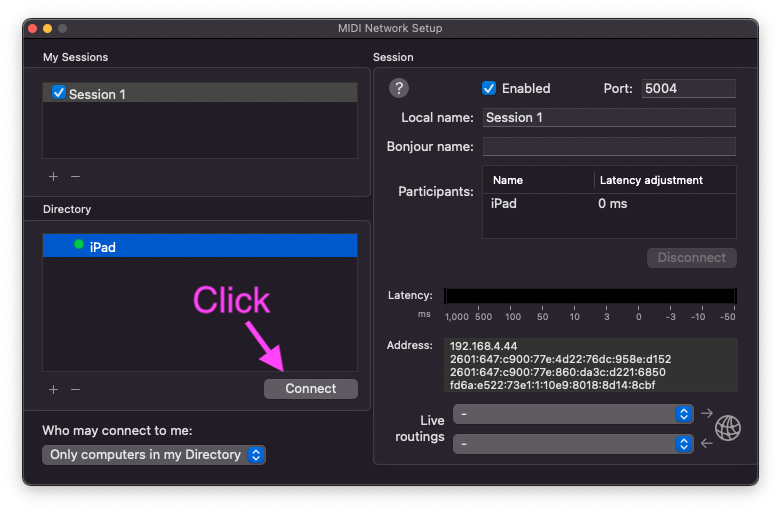

Network Midi Setup

Now the iPad and the Mac can exchange MIDI messages over wifi!

To enable MIDI control over WiFi for touchOSC in Ableton Live, follow these instructions:

  • Open Ableton Live
  • Open Preferences (Cmd+,)
  • Select the Link / Tempo / Midi panel
  • In the MIDI Ports section, ensure the Track and Remote checkboxes are selected for BOTH the In: Network (Session 1) and Out: Network (Session 1) rows.
Ableton Live MIDI config

Now you can map the controls in touchOSC to device controls in Ableton Live as you normally would, by using Cmd-M to Map Midi. Because of how it's set up above, the communication is bi-directional, so moving a control on screen with your mouse should move the control on the touchOSC UI on the iPad.

How It Works

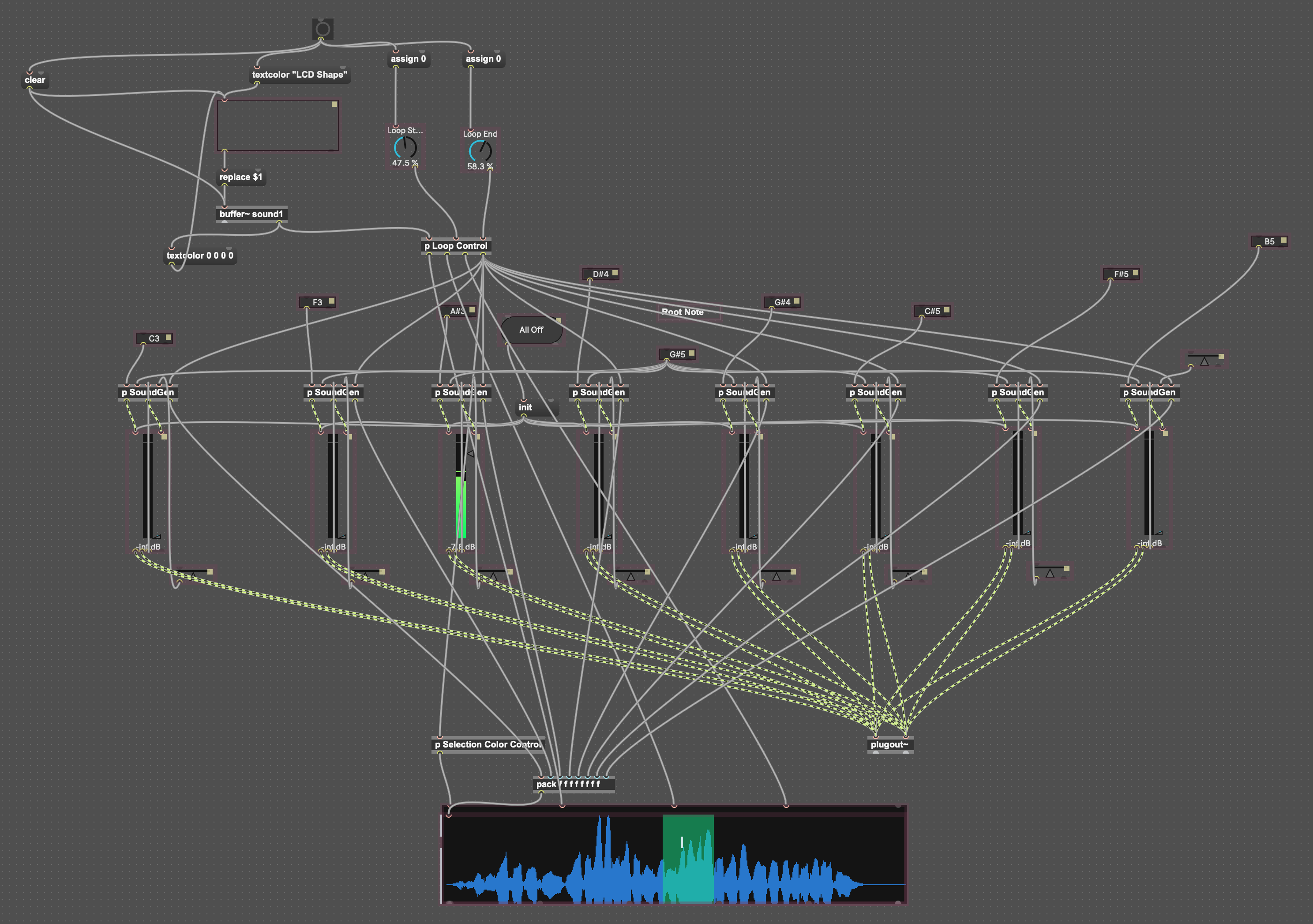

The dropped sample populates a buffer~ device. There are then 8 instances of a group of devices that will play back that buffer, starting with a groove~ device. Each of those instances can be configured with a pitch/note to play. The Gain slider is connected to some logic/math that will trigger the groove~ device to play once the gain is raised above -inf Db. Open it up and check it out!


And it is also a Blue Footed Boobie.



If you would like to contribute, then please have a look at the code on GitHub. Fork the repo, make your changes, then open a pull request to propose a change. Thanks!
